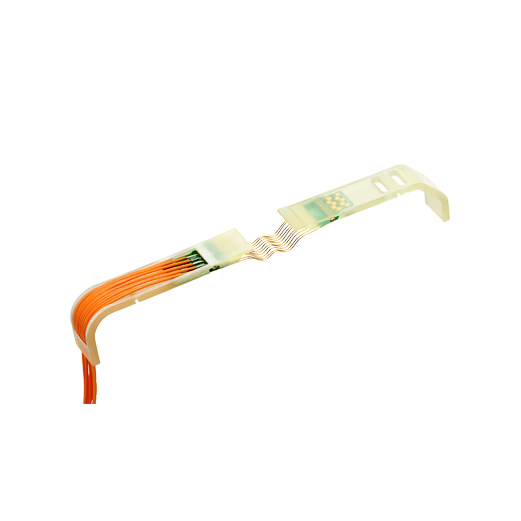

Single-Cell | W-Bend | VP-Lock | 1.200 | Test Bench

Cell Voltage Pickup

Cell scanning: Single Cell SC (1C)
Contact design: 0.4 mm spring wire with W-shape
Contact bearing: In printed circuit board two-sided
Interlocking type: Vertical-Pressure-Lock
Contact pitch min.: 1.200 mm
Pinhole/ Geometry: Pinslot rectangular, 1 mm depth
Bipolar plate material: Metal
Connection type: Wired
Benefit (USP): Extremely flat design („installation space neutral CVP solution“)
Application: Stationary power supply application
Housing material: PA12GB
Interesting: Solution for shortstacks and longstacks equally possible by using the required number of modules. Very easy to adapt.
