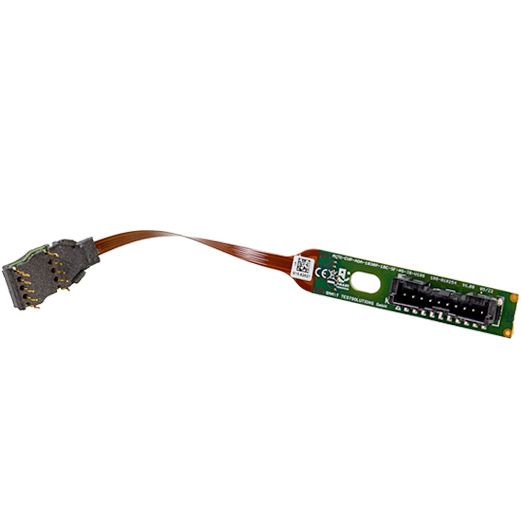

Single-Cell | S-Bend | P-Lock | 1.030 | Series

Cell Voltage Pickup

Cell scanning: Single Cell SC (1C)
Contact design: 0.4 mm spring wire with S-shape and straight insertion
Contact bearing: In PCB one-sided with redundant contact pin
Interlocking type: Positive lock in pinhole - special pinhole geometry
Contact pitch min.: 1.030 mm
Pinhole/ Geometry: Pin shape punched in bipolar plate foil
Bipolar plate material: Metal
Connection type: Flexcard
Benefit (USP): No additional mechanical lock required, extremely small size.
Application: Test field, automotive
Housing material: PA12GB
Interesting: Special geometry for automated assembly provided in housing. Number of contacts freely adaptable to application.
