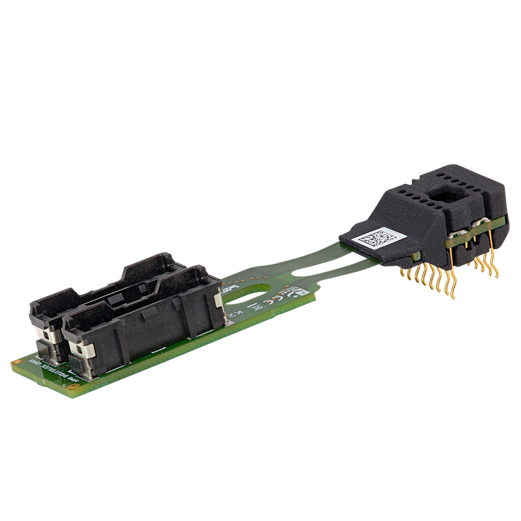

Single-Cell | S-Bend | F-Lock | 1.015 | Test Bench

Cell Voltage Pickup

Cell scanning: Single Cell SC (1C)
Contact design: 0.5 mm spring wire with S-shape
Contact bearing. In PCB one side with redundant contact pin
Interlocking type: Friction lock in pinhole
Contact pitch min.: 1.015 mm
Pinhole/ Geometry: Pin shape punched in bipolar plate foil
Bipolar plate material: Metal
Connection type: Flexcard
Benefit (USP): Wired solution allows CVP connection even at distributed test bench units
Application: Test bench, automotive
Housing material: PA12GB
Interesting: Special geometry for automated assembly kept in housing, diagnostic measuring points for measurements with additional measuring equipment.
