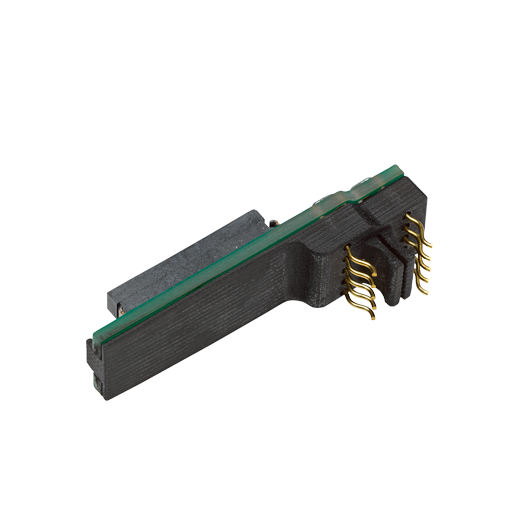

Single-Cell | S-Bend | F-Lock | 1.000 | Test Bench

Cell Voltage Pickup

Cell scanning: Single Cell SC (1C)
Contact design: 0.5 mm spring wire with S-shape
Contact bearing: In PCB one side with redundant contact pin
Interlocking type: Friction lock in pinhole, additional hold-down possible
Contact pitch min.: 1.000 mm
Pinhole/ Geometry: Pin shape punched in bipolar plate foil
Bipolar plate material: Metal
Connection type: Wired
Benefit (USP): Wired solution allows CVP connection also to distributed test bench units
Application: Test bench, automotive
Housing material: PA12GB
Interesting: Flexible application, also for laboratory applications.
