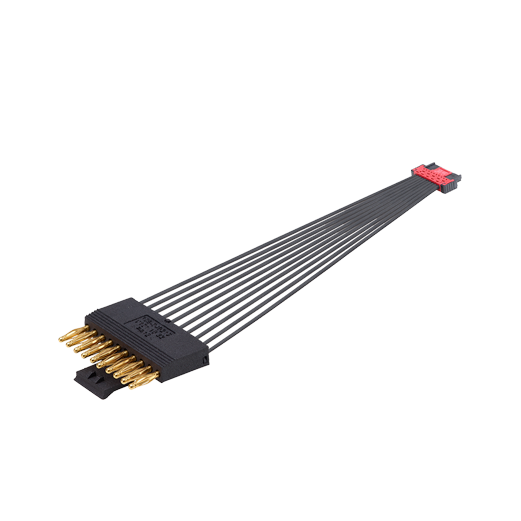

Single-Cell | MultiLam | P-Lock | 2.000 | Series

Cell Voltage Pickup

Cell scanning: Single Cell SC (1C)
Contact design: 2mm MultiLam
Contact bearing: In housing body, floating
Interlocking type: Positive Lock in plastic body
Contact pitch min.: 2.000 mm
Pinhole/ Geometry: Rectangle 2x2 mm
Bipolar plate material: Graphite
Connection type: Wired
Benefit (USP): Commercial contact with very good availability. Robust design.
Application: Series application, automotive
Housing material: PA12GB
Interesting: Per wire set usable with both CVM-G5 and CVM-G5S.
