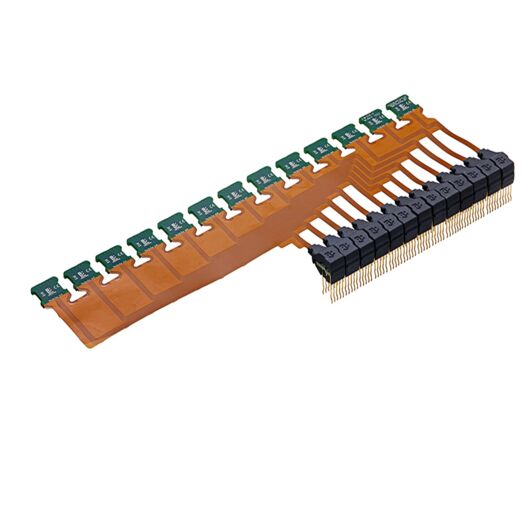

Single-Cell | S-Bend | F-Lock | 0.950 | Series

Cell Voltage Pickup

Cell sensing: Single Cell SC (1C)
Contact design: 0.5 mm spring wire with S-shape
Contact bearing: In PCB on one side with redundant contact pin
Locking type: Friction lock in pinhole, additional hold-down possible
Contact pitch min.: 0.950 mm
Pinhole/ Geometry: Pin shape punched in bipolar plate foil
Bipolar plate material: Metal
Connection type: Flexcard
Benefit (USP): Smallest cell pitch realised to date in this technology.
Application: Zero series off-road, racing cars, automotive.
Housing material: PA12GB
Interesting: The full stack with 250 cells is served with two 180° offset CVP solutions.
