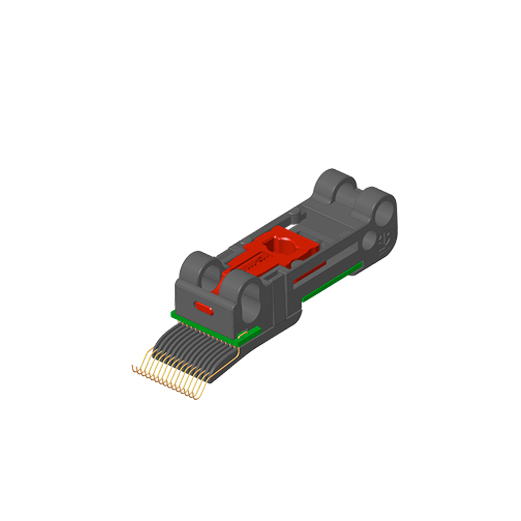

Mixed-Cell | A-Bend | VP-Lock | 1.715 | Series

Cell Voltage Pickup

Cell scanning: Mixed: 29x SC (1C), 100x TC (3C)
Contact design: 0.4 mm spring wire with 1/2 A-shape
Contact bearing:  In PCB one-sided with redundant contact pin
Interlocking type: Vertical-pressure-lock
Contact pitch min.: 1.715 mm
Pinhole/ Geometry: Pinslot rectangular, 1 mm depth
Bipolar plate material: Graphite
Connection typ: Flexcard
Benefit (USP): Modular positioning and locking possible. Allows mounting even with large stacks (>700 mm).
Application: Series application, marine
Housing material: PA12GB
Interesting: Special geometry for automated assembly held in housing.
