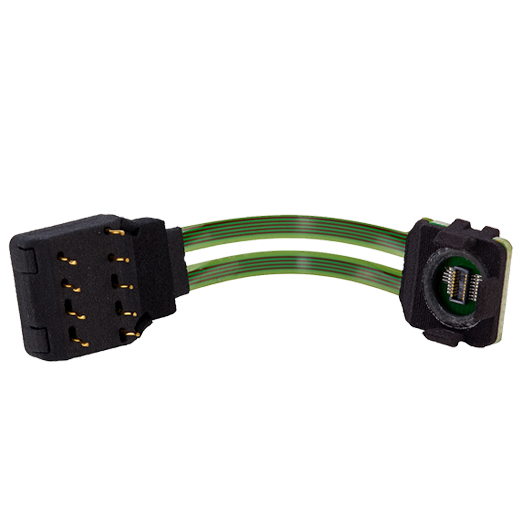

Double-Cell | S-Bend | F-Lock | 2.030 | Series

Cell Voltage Pickup

Cell scanning: Double Cell DC (2C)
Contact design: 0.5 mm spring wire with S-shape
Contact bearing: In PCB one side with redundant contact pin
Interlocking type: Friction lock in pinhole, additional hold-down possible
Contact pitch min.: 2.030 mm
Pinhole/ Geometry: Pin shape punched in bipolar plate foil
Bipolar plate material: Metal
Connection type: Flexcard
Benefit (USP): Design for higher production volumes. Successfully performed full automotive validation
Application: Series application, automotive
Housing material: PA12GB
Interesting: Special geometry for automated assembly held in the housing, diagnostic measuring points for measurements with additional measuring equipment.
