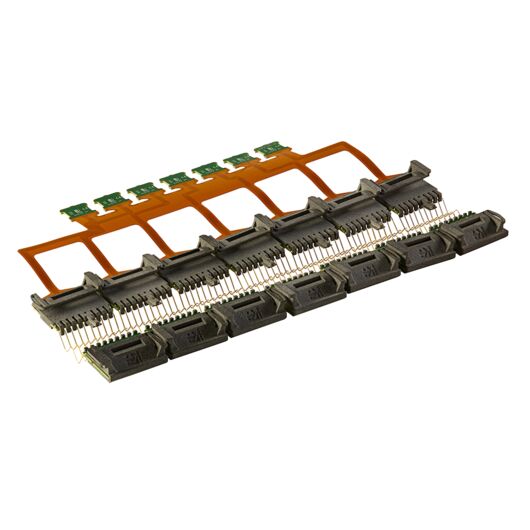

A cell contacting unit CVP (Cell Voltage Pickup) is a multichannel potential tap for detecting cell voltages on batteries or fuel cell stacks. Depending on the stack used, different construction principles are employed. The CVP pictured here is just one example.
Cell Voltage Pickup
Potential tap on fuel cell stacks.
The core features depend on the respective construction realised. As a rule:
- short installation times due to self-centering of the contacts
- ultra-compact: low overall height enables integration into existing series designs
- HV safety compliant with normative LV123
- extended temperature range: -25 to +85 ° C
- constant contact pressure and self-cleaning contacts
- Compensation of vibration and length changes to the stack by floating storage
